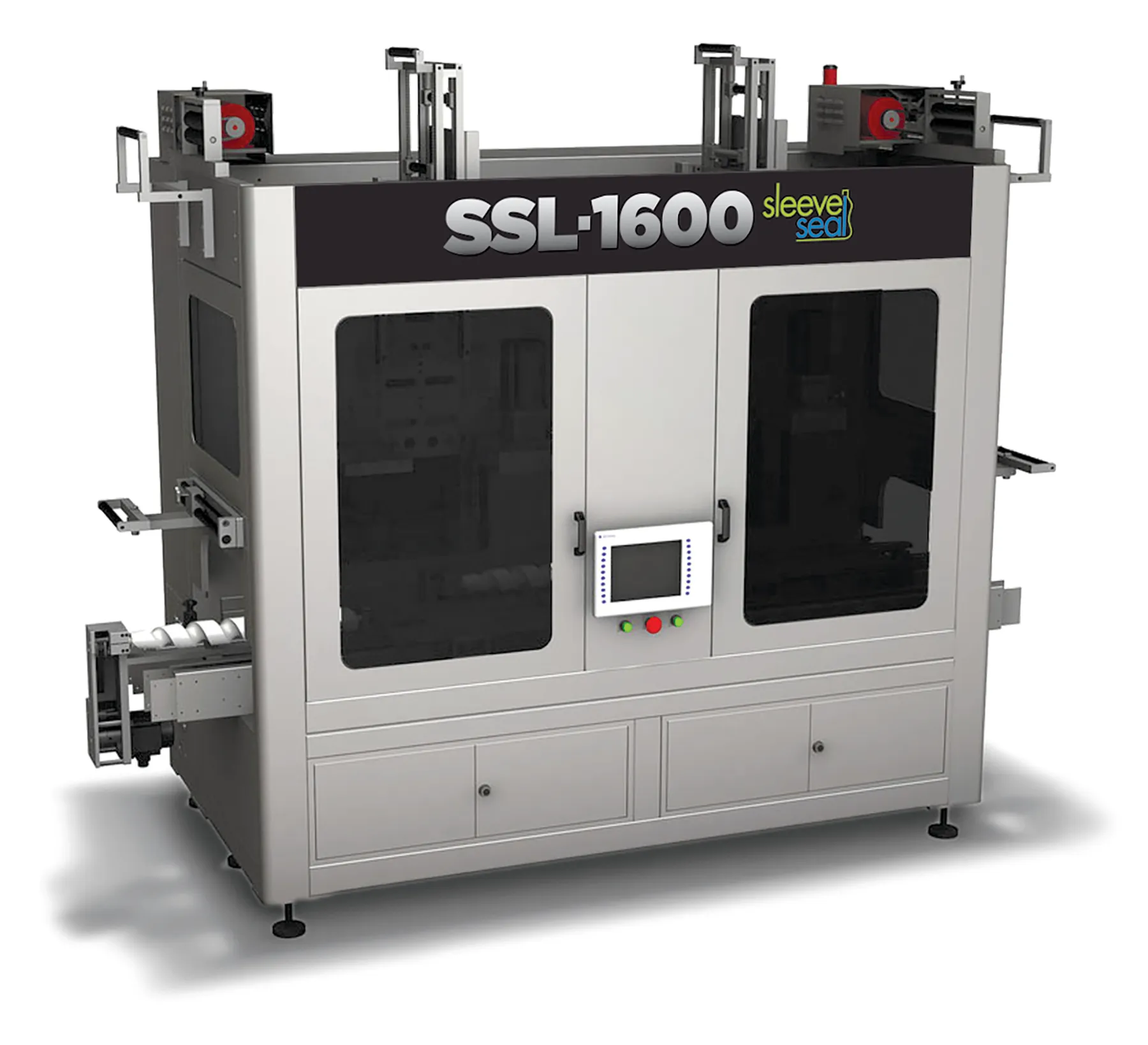

SSL-1600 MKII Dual-Head Vertical Sleeve Labeler
SSL-1600 MKII Dual-Head Vertical Sleeve Labeler
SSL-1600 MKII Dual-Head Vertical Sleeve Labeler
SSL-1600 MKII Dual-Head Vertical Sleeve Labeler

SSL-1600 MKII Dual-Head Vertical Sleeve Labeler

The Sleeve Seal SSL-1600 MKII vertical sleeve labeler is setting speed records in the pro-modified, dual head vertical sleeve labeler category. The two-lane, dual synchronized head system provides unique speeds and can employ two independent functions for each labeling head. Sleeve Seal continues to break new ground with faster, more reliable, more accurate vertical sleeve labeling machines. Top-level engineering and experience are a winning combination for performance.

Request A Quote

The drive train for the new SSL-1600 MKII vertical sleeve labeler features an advanced design that transfers power using timing belts for ease of maintenance and smooth power transmission. Like our other mechanical systems, Allen Bradley components provide power to precision machined parts for repeatable performance. Modular change parts make switching between formats fast and easy. Every Sleeve Seal labeler can be adjusted by the operator without tools, and all provide unparalleled efficiencies and longevity.

Access Cabinet

Every Sleeve Seal machine is housed in a heavy gauge stainless steel cabinet and includes lockable service doors for ease of maintenance and safety. Access to the front of the cabinet is managed with Allen Bradley safety interlock switches to ensure safety. Operators are able to manage operation and changeovers using a customized HMI and synchronized adjusters.

Cutter Box

Our patented cutter box design utilizes four to eight synchronized cutting blade heads for fast, precise cuts that won’t leave jagged film ends. Sleeve Seal cutter boxes use common, affordable utility blades that can be found in a local hardware store with other blade types available for use in harsh environments. Sleeve Seal’s modular design allows for easy replacement of blades and fast changeovers between formats.

Product Specifications
Production Rate: Labels 1600 CPM (Label Length 180 mm)
Bottle Sizes: 25 – 130 mm diameter
Label Length: 25 – 300 mm
Label Thickness: 35 – 80 micron (µm)
Materials: PVC, PETG, OPS

FAQs

Find answers to frequently asked questions about shrink sleeve machinery, labeling technology, and product packaging solutions.

The SSL-1600 MKII is our "speed champ," setting records in the dual-head shrink sleeve labeler category with an incredible production rate of up to 1600 CPM. By utilizing a two-lane, dual synchronized head system, this shrink sleeve machine provides unparalleled output for high-volume manufacturers. Each labeling head can even be programmed for independent functions, offering unique flexibility while maintaining the highest speeds in the shrink sleeve equipment industry.

Yes. Despite its record-breaking speed, the SSL-1600 MKII remains highly versatile. It can apply a sleeve label to bottle sizes ranging from 25mm to 130mm in diameter and supports label lengths up to 300mm. The system is compatible with PVC, PETG, and OPS materials. To keep up with this massive throughput, this shrink sleeve labeler is typically integrated with our high-capacity SST Series shrink tunnels and automated accumulation systems to ensure every product is finished with 99.5% efficiency.

The SSL-1600 MKII is built with a timing belt-driven drive train and Allen Bradley servos for smooth, repeatable power transmission and simplified maintenance. Like all of our sleeve labeler solutions, it features heavy-gauge stainless steel construction and a patented cutter box with synchronized blades for precision cuts. Its tool-less adjustment design ensures that even at these extreme speeds, operators can perform fast format changeovers, making it the most reliable high-speed shrink sleeve machine available.
