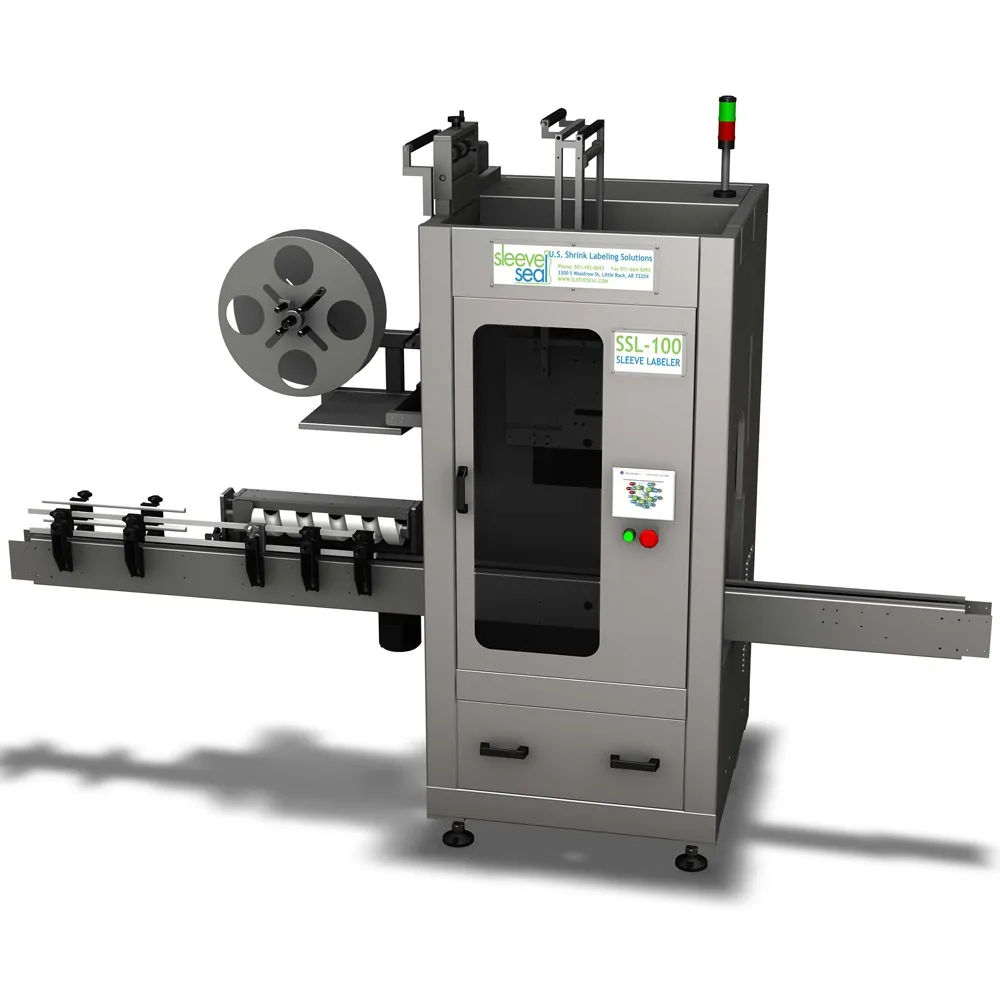

Our SSL-100 vertical sleeve labeler is a performance-driven label applicator with a small footprint able to label at up to 100 CPM. You’ll find the same construction and touch control interface of our other labeling machines integrated into a small machine with big format options. Sleeve Seal’s modular change parts allow for easy adaptation to both round and non-round formats with a tool-less adjustment system that allows fast, easy changeovers.

The SSL-100 vertical sleeve labeler drive train is engineered around Allen Bradley controls plus precision machined components that are designed for accuracy and durability. Our drive train design offers repeatable performance in a mechanically simple system that uses modular change parts that make switching between formats easy. All of our mechanical systems can be adjusted by the operator with no tools which gives Sleeve Seal labelers the reputation for being operator friendly, long lasting machines capable of efficiencies of 99.5%. All Sleeve Seal labelers perform precision labeling thanks to well-engineered components managed by Allen Bradley servos and controls.

Access Cabinet

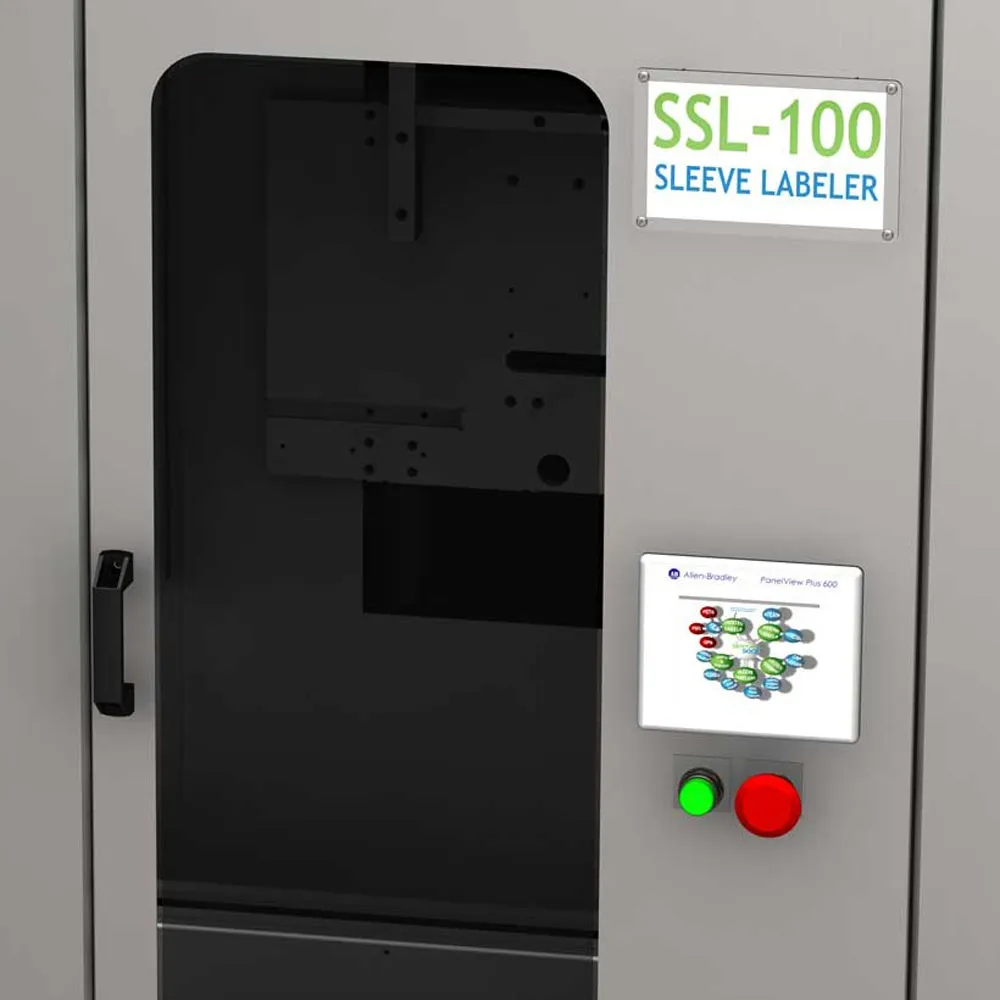

All Sleeve Seal labeling machines are housed in heavy gauge stainless steel cabinets made with removable service doors for ease of maintenance and safety. Operators can manage operation and changeovers using our purpose built HMI and synchronized adjusters.

Cutter Box

Our patented cutter box utilizes four to six synchronized cutting blades for fast, precise cuts that won’t leave jagged film ends. The unique modular design allows for easy change of blades or quick, tool-less changes to other cutter boxes when changing label format or container size. Sleeve Seal cutter boxes use common, affordable utility blades that can be found in a local hardware store. Other blade types designed for use in harsh environments are also available.

Product Specifications
SSL-100 Production Rate: Labels 100 CPM (Label Length 100 mm)
Bottle Sizes: 25 – 125 mm diameter
Label Length: 25 – 180 mm
Label Thickness: 35 – 80 micron (µm)
Materials: PVC, PETG, OPS
