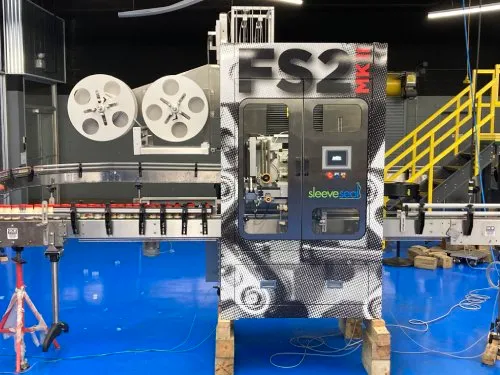

New for 2020, the FS2 MKII from Sleeve Seal fits in the sweet spot of our range of labelers. With speeds up to 375CPM, it is a precision machine with the durability that has made Sleeve Seal an industry leader. Intuitive operator interface and controls make any of our labelers easy to operate at the highest efficiencies.

Watch the FS2 In Action

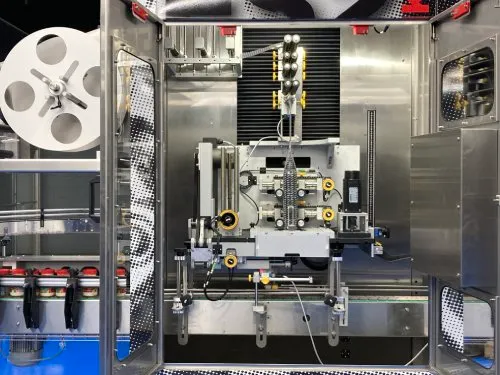

The FS2 MKII drive train is engineered around Allen Bradley controls plus precision machined components that are designed for accuracy and durability. Our drive train design offers repeatable performance in a mechanically simple system that uses modular change parts, making a switch between formats easy. All of our mechanical systems can be adjusted by the operator with no tools, giving Sleeve Seal labelers the reputation as operator friendly, long-lasting machines capable of efficiencies of 99.5%. All Sleeve Seal labelers perform precision labeling thanks to well-engineered components managed by Allen Bradley servos and controls.

Access Cabinet

Every Sleeve Seal machine is housed in a heavy gauge stainless steel cabinet and includes lockable service doors for ease of maintenance and safety. Access to the front of the cabinet is managed with Allen Bradley safety interlock switches to ensure safety. Operators are able to manage operation and changeovers using a customized HMI and synchronized adjusters.

Cutter Box

Our patented cutter box design utilizes four to eight synchronized cutting blade heads for fast, precise cuts that won’t leave jagged film ends. Sleeve Seal cutter boxes use common, affordable utility blades that can be found in a local hardware store with other blade types available for use in harsh environments. Sleeve Seal’s modular design allows for easy replacement of blades and fast changeovers between formats.

Product Specifications
FS2 Production Rate: 375 CPM
Bottle Sizes: 25 – 128 mm diameter
Label Length: 25 – 300 mm
Label Thickness: 35 – 80 micron (µm)
Materials: PVC, PETG, OPS
